    • A NEW GENERATION OF INTELLIGENT RINK

    The new generation of smart cable projects, combining cutting-edge technology and ingenuity, are designed for tourists who pursue the ultimate experience.

    The new generation of smart cable projects, combining cutting-edge technology and ingenuity, are designed for tourists who pursue the ultimate experience. We are committed to setting a new standard in the industry in terms of safety, beauty, intelligence and practicality, bringing tourists an unprecedented aerial glide feast.

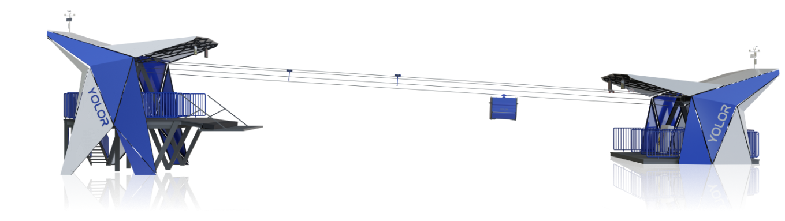

    A new generation of intelligent rink

    O Download +
    Hinter der Idee verbirgt sich das Konzept des intermodalen nachhaltigen Personentransports. Die Fahrgäste sollen ihr Wunschziel ohne Umsteigen von einem Verkehrsmittel zum anderen erreichen. Für Seilbahnen nicht zugängliche Bereiche im urbanen Kontext werden durch selbstfahrende Module erreicht, beispielsweise Bahnhöfe oder U-Bahn Stationen.

    MARY

    Design Director

    A NEW GENERATION OF INTELLIGENT RINK

    The new generation of smart cable projects, combining cutting-edge technology and ingenuity, are designed for tourists who pursue the ultimate experience. We are committed to setting a new standard in the industry in terms of safety, beauty, intelligence and practicality, bringing tourists an unprecedented aerial glide feast.

    Key Characteristics

    More durable: the main material of the station is high-quality structural steel.

    More beautiful: V-shaped main structure + aluminum gusset plate.

    More intelligent: real-time screen, automatic monitoring, automatic release, intelligent braking, data terminal, automatic control.

    Design

    Streamlined shape, anodized treatment, sandblasting texture, mechanical structure design, centrifugal eddy current braking.

    Performance

    100000+ sliding test, 20N ultra-low running resistance, HB180 surface hardness, 50 decibel sliding noise.

    Features

    Multiple sliding postures, smooth braking, easy operation, automatic speed adjustment.

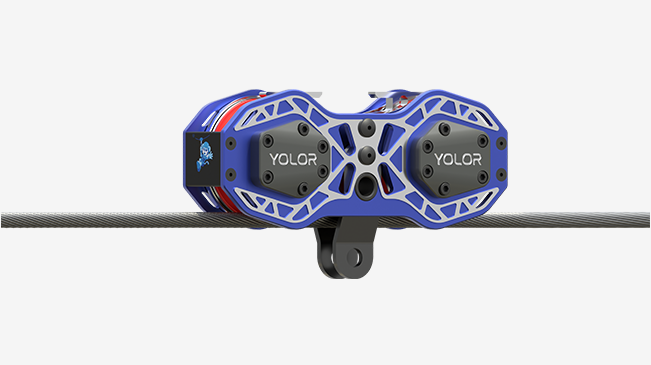

    Tackle System

    Version

    Dual versions of automatic catcher (automatic vs. manual), 2 brake kits for different operators.

    Performance

    Eddy current brake (6m/s braking distance within 5 meters, hanging device swing within 10°), manual brake (6m/s braking distance within 5 meters, hanging device swing within 30°).

    Brake System

    Material

    16mm steel core wire with smooth surface and compacted strands.

    Process

    Optimized steel core wire, advanced heat treatment technology, unique twisting process, destructive pressure test.

    Performance

    80000+ passenger frequency, 208KN super strong breaking force, 100+ breaking force test, 20N ultra-low running resistance.

    Cable System

    Material

    High-quality structural steel, practical, weather-resistant, anti-corrosive, and earthquake-resistant.

    Appearance

    V-shaped main frame + aluminum gusset plate, beautiful, stable, strong load-bearing, and light.

    Function

    Integrated with 8 major functions (release system, braking system, buffer system, recovery system, monitoring platform, data terminal, monitoring equipment, electrical control).

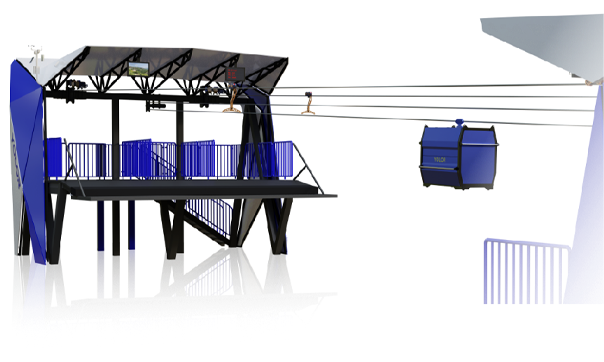

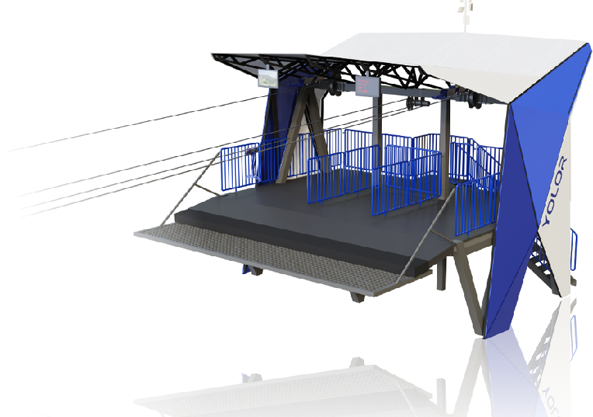

    Station Building System

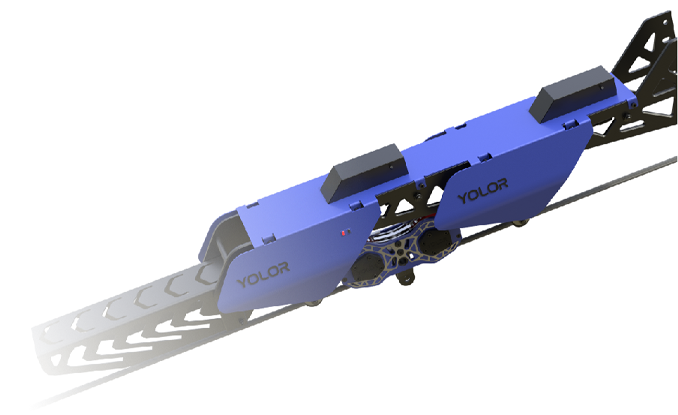

    Release Device

    Material: Aviation aluminum, spacecraft shape, anodizing, sandblasting process.

    Functions: Automatic release pin, electronic actuator, position sensor, automatic power off protection device.

    Performance: 10000 release tests, 17 rounds of optimization adjustment, 8 intelligent function integration.

    Rescue Device

    Remote Control

    Remote Control

    Intelligent Positioning

    Intelligent Positioning

    Full Monitoring

    Full Monitoring

    Automatic Capture

    Automatic Capture

    Long Life

    Long Life

    Strong Power

    Strong Power

    Light Material

    Light Material

    Stable Operation

    Stable Operation

    Performance: 600min measured endurance, 200kg measured towing force, 3CM positioning error, 100% accurate capture, 50km/h no-load speed, 10km/h towing speed.

    Recovery Unit

    Features: built-in partition, easy to move, CNC winch, automatic locking, intelligent positioning, arrival reminder.

    Performance: Box weight 30kg, carrying speed 20km/h.

    Safety belt

    Material wear-resistant, durable, strong support, excellent experience, multiple styles.

    Anti-collision sponge mat

    Environmentally friendly rubber material, support personalized customization, high density, strong elasticity, ultra-durable.

    Electronic control system

    New cable new electric control, each instruction to ensure the quality of the cable running.

    Our Services

    Site Inspection

    Site Inspection

    Planning and Design

    Planning and Design

    Delivery and Acceptance

    Delivery and Acceptance

    Field Commissioning

    Field Commissioning

    Maintenance Inspection

    Maintenance Inspection

    Staff Training

    Staff Training
